上平面贴标机LPE-LFC25

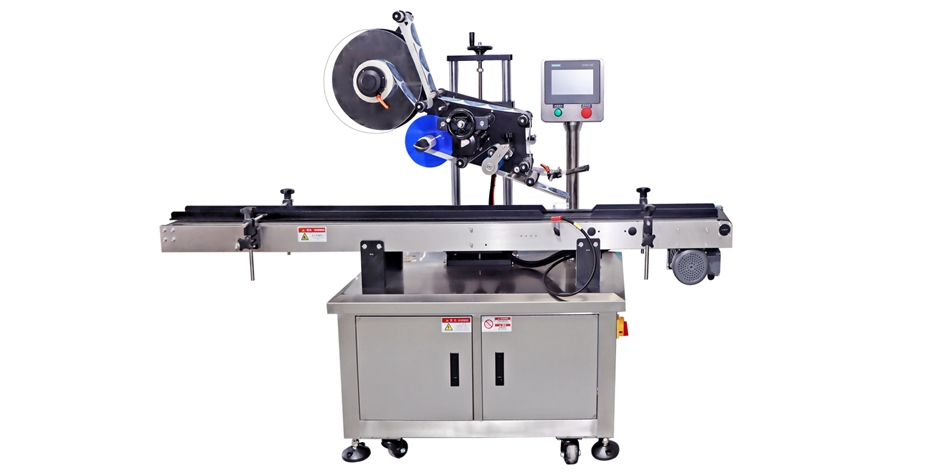

名称:上平面贴标机LPE-LFC25

详细信息


特点:

1.适用范围广,可满足产品宽度30mm~350mm的产品平面贴标和不干胶膜,更换覆标机构可满足不平整表面贴标;

2.贴标精度高,细分步进电机或伺服电机驱动送标,送标精准;标带绕行纠偏机构设计,保证标签牵引过程中不左右偏移;偏心轮技术应用于牵引机构,牵引标签不打滑,确保出标精准;

3.,调整座有6个可调的方向和角度,适用性加强,不同产品之间的转换变得简单、省时;

4.智能控制,自动光电追踪,具备无物不贴标,无标自动校正和标签自动检测功能,防止漏贴和标签浪费;

5.触摸屏操作界面,各种参数调整简单快捷,操作方便;

主要参数
贴标速度:约0-260P/分钟(与产品尺寸大小有关)
贴标精度:±1mm(不包含产品标签等误差)
适用产品尺寸:长度30-280mm;高度30-200mm;
适用标签范围:长度10~260mm、宽度10-155mm
最大标签供应: 外径 300以内,内径76mm
使用环境:0-50℃
环境相对湿度:15-85%

电压规格:AC220V 50/60Hz
外形尺寸:约L2200*W1400*H1750mm

 量: 约160Kg

贴标机标签参数(仅供参考):
标签间距:2-3mm±0.2mm
标签来料方式为卷料
材料:建议采用格拉辛底纸,底纸避免有切伤或者切痕,影响贴标正常操作;



Pressure sensitive labeler for top side

Features:

1. Wide application range, can meet product width labeling and self-adhesive film with product width 30mm~350mm, and replace the labeling mechanism to meet the uneven surface labeling;

2. High precision of labeling, subdivided stepper motor or servo motor drive to send labels, accurate delivery; label belt bypass correction mechanism design, to ensure that the label does not shift left and right during the traction process; eccentric technology applied to traction mechanism, traction The label does not slip, ensuring accurate bidding;

3. The adjustment seat has 6 adjustable directions and angles, the applicability is strengthened, and the conversion between different products becomes simple and time-saving;

4. Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection to prevent leakage and label waste;



Main parameters:



Labeling speed: about 0-260P/min (related to product size)

Labeling accuracy: ±1mm (does not include product label and other errors)

Applicable product size: length 30-280mm; height 30-200mm;

Applicable label range: length 10 ~ 260mm, width 10-155mm

Max label supply: OD 300 or less, inner diameter 76mm

Use environment: 0-50 °C

Relative humidity: 15-85%

Voltage specification: AC220V 50/60Hz

Dimensions: about L2200*W1400*H1750mm

Weight: about 160Kg





Labeling machine label parameters (for reference only):

Label spacing: 2-3mm ± 0.2mm

Label feeding method is coil material

Material: It is recommended to use Glassine body paper, it should to avoid cuts , which affects the normal operation of labeling;
