特点：

1.一台机可实现四种产品的单侧面贴标，圆瓶、扁瓶、方瓶、异形瓶。

2.配置自动分瓶结构，导瓶前自动分开间距，保证后续导瓶、输送和贴标的稳定性。

3.智能控制，自动光电追踪，具备无物不贴标，无标自动校正和标签自动检测功能。

4.配置两重覆标结构，首次保证贴标精度，二次弹压式覆标，有效消除气泡和保证标签头尾贴紧

主要参数：

贴标速度 ：0-180瓶/分钟（速度与直径有关）

贴标精度 ： ±1mm

兼容直径范围 ：直径25-150mm（根据客户要求订制）

输送带离地高度：800mm(可根据客户要求订制）

电压： 220V 50HZ

空气压力 ：5kg/cm³

兼容标签尺寸 ：长度10-300  宽度10-150（可订制）

设备尺寸 ：2200*800*1580mm

机械重量 ：约200kg

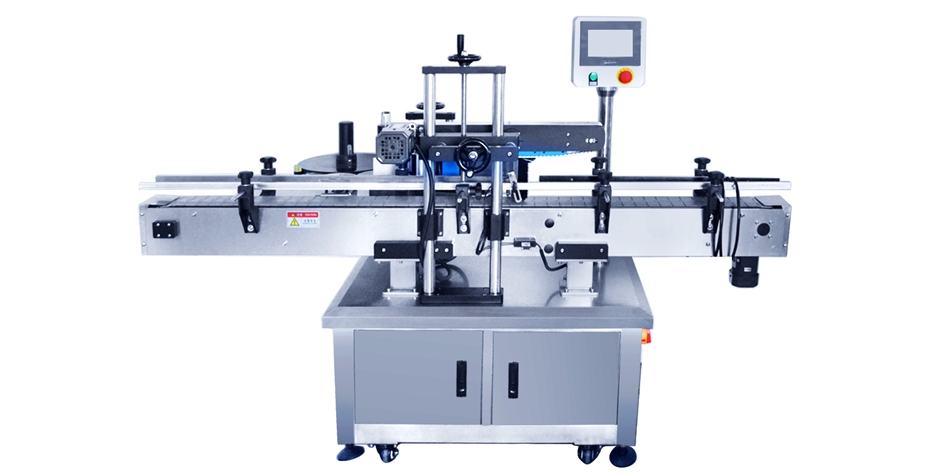

Pressure sensitive labeler for single side

Features:

1. One machine can realize single side labeling of four products, round bottle, flat bottle, square bottle and shaped bottle.

2. The automatic splitting structure is configured, and the spacing is automatically separated before the guiding bottle to ensure the stability of subsequent guiding, conveying and labeling.

3. Intelligent control, automatic photoelectric tracking, with no object no labeling, no standard automatic calibration and automatic label detection.

4. Configure the double-overlaying structure to ensure the labeling accuracy and the second elastic-type overlay for the first time, effectively eliminating the air bubbles and ensuring that the label head and tail are tightly attached.

Main parameters:

Labeling speed: 0-180 bottles / minute (speed is related to diameter)

Labeling accuracy : ±1mm

Compatible diameter range: diameter 25-150mm (customized according to customer requirements)

Height of conveyor belt from the ground: 800mm (can be customized according to customer requirements)

Voltage: 220V 50HZ

Air pressure: 5kg/cm3

Compatible label size: length 10-300 width 10-150 (customizable)

Size: 2200*800*1580mm

Weight: about 200kg
